A Demo User Community

A.1 Using the Demo User Community

After installing Oracle SOA Suite, you must seed the user demo community in the database. The demo user community is an organizational hierarchy of users and groups.

To seed the demo user community:

Download the workflow-001-DemoCommunitySeedApp sample from the following URL:
```
http://www.oracle.com/technology/sample_code/products/hwf/index.html
```
Follow the instructions in the README.txt file included with this sample. This file describes how to seed the user demo community described in the appendix.

A.2 Users

Table A-1 lists the users in the demo community.

Table A-1 Users in the Demo Community

User	User Name	First Name	Last Name	Title	Manager	E-Mail
1	achrist	Agatha	Christie	Loan Consultant	wfaulk	[email protected]
5	cdickens	Charles	Dickens	CEO	--	[email protected]
6	cdoyle	Conan	Doyle	Loan Agent 2	rsteven	[email protected]
3	EHEMING	Ernest	Hemingway	CFO	JVerne	[email protected]
7	fkafka	Franz	Kafka	Manager 1	ltolstoy	[email protected]
8	istone	Irving	Stone	Loan Agent 2	sfitzger	[email protected]
9	jausten	Jane	Austen	Loan Consultant	fkafka	[email protected]
10	jcooper	James	Cooper	Loan Agent 1	jstein	[email protected]
11	jlondon	Jack	London	Loan Agent 1	sfitzger	[email protected]
12	jstein	John	Steinbeck	Manager 2	wfaulk	[email protected]
2	JVerne	Jules	Verne	CIO	cdickens	[email protected]
13	ltolstoy	Leo	Tolstoy	Director	wfaulk	[email protected]
14	mmitch	Margaret	Mitchell	Loan Analyst	fkafka	[email protected]
15	mtwain	Mark	Twain	Loan Agent 2	jstein	[email protected]
16	rsteven	Robert	Stevenson	Manager 3	jstein	[email protected]
17	sfitzger	Scott	Fitzgerald	Manager 1	wfaulk	[email protected]
18	szweig	Stefan	Zweig	Loan Analyst	fkafka	[email protected]
4	VHUGO	Victor	Hugo	HR Manager	EHEMING	[email protected]
19	wfaulk	William	Faulkner	Vice President	cdickens	[email protected]
20	wshake	William	Shakespeare	Manager 3	rsteven	[email protected]

Figure A-1 shows the organizational hierarchy of the demo community.

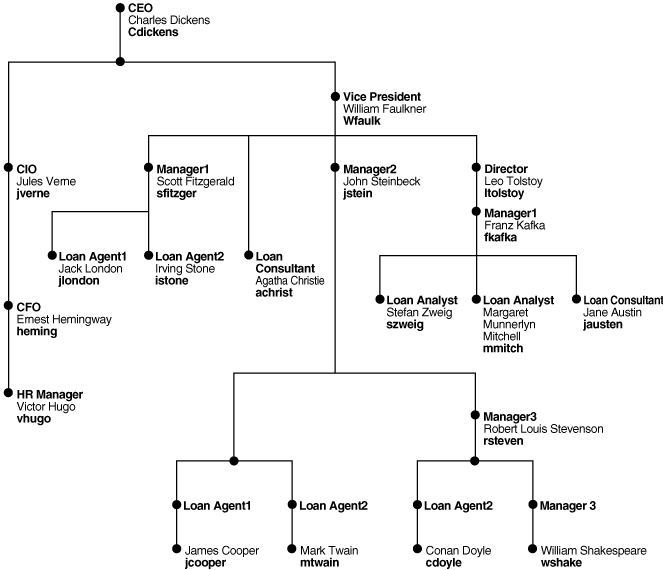

Figure A-1 Demo Community Organizational Hierarchy

Description of "Figure A-1 Demo Community Organizational Hierarchy"

A.3 Groups

Table A-2 lists the groups in the demo community; the users and groups that are granted each group role (direct grantees and all grantees); and the group roles and application roles granted to each group (direct-granted roles and all granted roles). See Table A-6 for the roles granted to users sorted by user.

Table A-2 Groups in the Demo Community: Grant Relationships

Group	Direct Grantees	All Grantees	Direct-Granted Roles	All Granted Roles
RegionalOffices	CentralRegion, WesternRegion, EasternRegion	szweig, wshake, jcooper, WesternRegion, mmitch, EasternRegion, jlondon, CentralRegion, istone, cdoyle, mtwain, California, fkafka	-	-
EasternRegion	szweig, wshake, mmitch, fkafka	szweig, wshake, mmitch, fkafka	RegionalOffices	RegionalOffices
CentralRegion	jlondon, mtwain	jlondon, mtwain	RegionalOffices	RegionalOffices
WesternRegion	cdoyle, California	jcooper, istone, cdoyle, California	RegionalOffices	RegionalOffices
California	jcooper, istone	jcooper, istone	WesternRegion	RegionalOffices, WesternRegion
LoanAgentGroup	jlondon, wshake, LoanAnalyticGroup, jcooper, istone, cdoyle, mtwain	szweig, jlondon, wshake, LoanAnalyticGroup, jcooper, istone, cdoyle, mtwain, mmitch, fkafka	-	-
LoanAnalyticGroup	szweig, mmitch, fkafka	szweig, mmitch, fkafka	BPMWorkflowCustomize, LoanAgentGroup	BPMWorkflowCustomize, LoanAgentGroup
Supervisor	jcooper, mtwain, rsteven	jcooper, mtwain, rsteven	-	-
Executives	cdickens, JVerne, EHEMING, VHUGO	cdickens, JVerne, EHEMING, VHUGO	-	-

Table A-3 continues information for several groups listed in Table A-2. It lists the users and groups (direct owners and all owners) that own each group and the group roles (direct-owned roles and all owned roles) that each group owns. See Table A-6 for the roles owned by users sorted by user.

Table A-3 Groups in the Demo Community: Ownership Relationships

Group	Direct Owners	All Owners	Direct Owned Roles	All Owned Roles
EasternRegion	jstein	jstein	-	-
WesternRegion	jstein	jstein	-	-
California	fkafka	fkafka	-	-
LoanAgentGroup	jcooper, fkafka	jcooper, fkafka	-	-
LoanAnalyticGroup	jstein	jstein	-	-
Supervisor	jstein	jstein	-	-

A.4 soa-infra Application Roles

Table A-4 lists the soa-infra application roles; the users, groups, and roles that are granted each application role (direct grantees and all grantees); and the roles granted to each application role (direct-granted roles and all granted roles). See Table A-6 for the application roles granted to users sorted by user.

Table A-4 Application Roles in soa-infra

Application Role	Direct Grantees	All Grantees	Direct-Granted Roles	All Granted Roles
SOAAdmin	Administrators	Administrators	BPMWorkflowAdmin	BPMWorkflowCustomize BPMWorkflowAdmin
BPMWorkflowAdmin	SOAAdmin, demoadmin	SOAAdmin, demoadmin, Administrators	BPMWorkflowCustomize	BPMWorkflowCustomize
BPMWorkflowCustomize	LoanAnalyticGroup, BPMWorkflowAdmin	szweig, LoanAnalyticGroup, SOAAdmin, BPMWorkflowAdmin, mmitch, fkafka, Administrators, demoadmin	-	-

For more information about application roles, see Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.

A.5 SOATestDemoApp Application Roles

Table A-5 lists the roles in the SOATestDemoApp application.

Table A-5 SOATestDemoApp Roles

Application Role	Direct Grantees	All Grantees	Direct-Granted Roles	All Granted Roles
DevTeam	rsteven	rsteven, mmitch, fkafka, jcooper, istone
QATeam	jlondon, Supervisor	jlondon, jcooper, mtwain, rsteven, mmitch, fkafka, istone
ProductionTeam	mmitch, fkafka, California	mmitch, fkafka, jcooper, istone	DevTeam, QATeam	DevTeam, QATeam

A.6 Roles Granted to and Owned by Users

Table A-6 lists the roles granted to each user (direct-granted roles and all granted roles) and the roles owned by each user (direct-owned roles and all owned roles).

Table A-6 Roles for Each User

User Name	Direct-Granted Roles	All Granted Roles	Direct-Owned Roles	All Owned Roles
achrist	Executives	-	-	-
cdickens	-	-	Executives	-
cdoyle	WesternRegion, LoanAgentGroup	RegionalOffices, WesternRegion, LoanAgentGroup	-	-
EHEMING		Executives
fkafka	LoanAnalyticGroup, EasternRegion, ProductionTeam	BPMWorkflowCustomize, RegionalOffices, LoanAnalyticGroup, LoanAgentGroup, EasternRegion, ProductionTeam, DevTeam, QATeam	LoanAgentGroup, California	LoanAgentGroup, California
istone	LoanAgentGroup, California	RegionalOffices, WesternRegion, LoanAgentGroup, California, DevTeam, QATeam, ProductionTeam	-	-
jausten	-	-	-	-
jcooper	Supervisor, LoanAgentGroup, California	RegionalOffices, WesternRegion, Supervisor, LoanAgentGroup, California, DevTeam, QATeam, ProductionTeam	LoanAgentGroup	LoanAgentGroup
jlondon	CentralRegion, LoanAgentGroup, QATeam	CentralRegion, RegionalOffices, LoanAgentGroup, QATeam	-	-
jstein	-	-	LoanAnalyticGroup WesternRegion, Supervisor, EasternRegion	LoanAnalyticGroup WesternRegion, Supervisor, EasternRegion
JVerne		Executives
ltolstoy	-	-	-	-
mmitch	LoanAnalyticGroup, EasternRegion, ProductionTeam	BPMWorkflowCustomize RegionalOffices, LoanAnalyticGroup, LoanAgentGroup, EasternRegion, DevTeam, QATeam, ProductionTeam	-	-
mtwain	CentralRegion, Supervisor, LoanAgentGroup	CentralRegion, RegionalOffices, Supervisor, LoanAgentGroup, QATeam	-	-
rsteven	Supervisor, DevTeam	Supervisor, DevTeam	-	-
sfitzger	-	-	-	-
szweig	LoanAnalyticGroup, EasternRegion	BPMWorkflowCustomizeDemoApp/FlexFieldRole, RegionalOffices, LoanAnalyticGroup, LoanAgentGroup, EasternRegion
vhugo		Executives
wfaulk	-	-	-	-
wshake	LoanAgentGroup, EasternRegion	RegionalOffices, LoanAgentGroup, EasternRegion	-	-

A.7 The WorkflowPermission Class

Table A-7 lists the permissions defined in the WorkflowPermission class and the application roles associated with each permission.

Table A-7 WorkflowPermission Class

Permission	Application Role with Permission
workflow.mapping.publicFlexField	BPMWorkflowAdmin, BPMWorkflowCustomize
workflow.mapping.protectedFlexField	BPMWorkflowAdmin
workflow.admin	BPMWorkflowAdmin
workflow.admin.evidenceStore	BPMWorkflowAdmin
