This chapter describes how to get started with the Enterprise Manager Integration Utility and use it to integrate Enterprise Manager with Oracle Enterprise Repository.
This chapter contains the following sections:
Section 5.2, "Using the Enterprise Manager Integration Utility"
Section 5.3, "Configuring the Enterprise Manager Integration Utility"
Enterprise Manager (EM) is a comprehensive monitoring tool. It includes support for monitoring Oracle's SOA Products, as well as J2EE Servers, Databases, JVMs, and Operating Systems.
The EM Integration utility closes the loop between runtime and design-time by providing a summary of runtime performance metrics from EM into Oracle Enterprise Repository. The EM Integration utility pulls from EM and pushes to Oracle Enterprise Repository. The EM Integration tool currently supports and works with EM Grid Control 11g.
This section contains the following topics:
Before using the EM Integration utility, you must perform the following prerequisites:
The EM Integration utility requires the OER-Harvester datapack to be installed in Oracle Enterprise Repository.
The assets that receive metrics from EM must already be in Oracle Enterprise Repository. They should have been published to Oracle Enterprise Repository from SOA Suite/BPEL-PM or Oracle Service Bus using the Oracle Enterprise Repository Harvester. The EM Integration utility requires the OER-Harvester datapack to be installed in Oracle Enterprise Repository.
For more information about importing, see Oracle Fusion Middleware Configuration Guide for Oracle Enterprise Repository.
The EM Integration utility needs read access to the Enterprise Manager shared database views.
For more information, see http://download.oracle.com/docs/cd/B16240_01/doc/em.102/b40007/views.htm#BACCEIBI.
The EM Integration utility requires Java SDK version 6 or higher.
Install 11g EM Grid Control to enable EM Integration tool to harvest into Oracle Enterprise Repository. The Oracle Enterprise Repository EM Integration tool, currently, only integrates with EM-Grid control and works only with 10g version of SOA.
To obtain the Enterprise Manager Integration utility:
Navigate to this Oracle_HOME\repositoryXXX\core\tools\solutions
directory on your computer. A list of all the solution packs for Oracle Enterprise Repository is displayed.
Unzip the 11.1.1.2.0-EM-Integration.zip file to a temporary directory.
Import the 11.1.1.2.0-OER-Harvester-Solution-Pack.zip file into Oracle Enterprise Repository using the Import/Export Tool. For more information, see Oracle Fusion Middleware User Guide for Oracle Enterprise Repository.
You can use the EM Integration utility to:
Publish metrics from Oracle Service Bus Services in EM to existing Oracle Enterprise Repository assets.
Publish metrics from BPEL-PM Processes in EM to existing Oracle Enterprise Repository assets.
Publish metrics from Web Services in EM to existing Oracle Enterprise Repository assets.
Publish Endpoint and Deployment : BPEL assets in Oracle Enterprise Repository from deployment information in EM.
Support links back to the detailed metrics in EM, from the Oracle Enterprise Repository Web UI.
Support configurability and extensibility, so that new targets in EM can be mapped to Oracle Enterprise Repository assets.
This section describes how to use the Enterprise Manager Integration Utility.
This section contains the following topics:
The EM Integration utility can be run in the command line using the em-integration.bat
utility (for Windows) or em-integration.sh
(for Linux and Unix).
Before running em-integration.bat
or em-integration.sh
, ensure that the environment variables mentioned in Table 5-1 are set. In Windows, from a command window, you can type "set X" to see the value of the variable X, and "set X=abc" to set the value of FOO to "abc".
Environment Variable | Description |
---|---|
|
Ensure that the |
|
Ensure that you set your
See Also: http://java.sun.com/javase/6/docs/technotes/guides/net/proxies.html |
Table 5-2 shows the options that can be specified using the EM Integration command line utility:
Table 5-2 Command Line Options for the EM Integration
EM Integration Options | Description |
---|---|
|
Refers to the configuration settings specified in the XML file. |
|
Specifies the URL for the Oracle Enterprise Repository instance. |
|
Specifies the name of the Oracle Enterprise Repository user. |
|
Specifies the password of the Oracle Enterprise Repository user. To ensure security, the password must be encrypted. The Oracle Enterprise Repository Web console has a tool to encrypt passwords: http://<host>:<port>/<domain>/diag/encryptstrings.jsp |
|
Specifies the JDBC URL for the EM database. |
|
Specifies the EM database user name. |
|
Specifies the EM database password. To ensure security, the password must be encrypted. The Oracle Enterprise Repository Web console has a tool to encrypt passwords: http://<host>:<port>/<domain>/diag/encryptstrings.jsp For more information about encrypting passwords from command-line, see Section 5.4, "Encrypting the Configuration File Passwords". |
|
Displays the online help for the EM Integration utility. |
Note:
Note none of the above options are mandatory and these can be omitted. If the options are omitted, then the utility makes use of the information in theem-integration-settings.xml
file in the current directory where em-integration.bat
resides. If the command line parameters are provided, then these override the information in em-integration-settings.xml

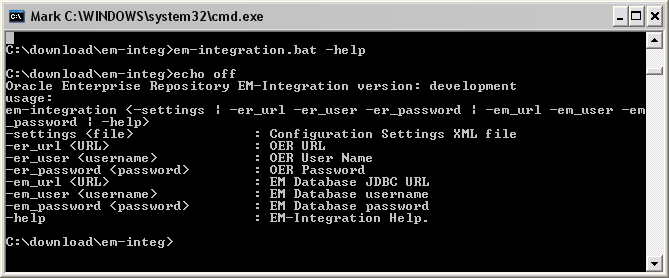

.Figure 5-1 shows the command line utility options and online help displayed by the em-integration.bat -help
command.
Figure 5-1 Enterprise Manager Integration Command-Line Utility Options
Enterprise Manager has the ability to schedule command-line applications to run periodically. The EM Integration utility can be scheduled to run this way.
For more information, see "Job System" in Oracle Enterprise Manager Administrator's Guide.
It is recommended that you schedule the EM Integration to run once a day, in the evening or when there is low activity on the system.
The section describes the various metric publishing options:
EM Integration updates existing assets in Oracle Enterprise Repository of type "Endpoint
", which have an endpointURI attribute that matches the endpointURI metric in EM, for Oracle Service Bus Proxy Services and External Services.
Note:
An External Service is a service, which is invoked by an Oracle Service Bus Business Service.If no "Endpoint
" asset is found with the matching endpointURI, then the tool attempts to find a matching Service asset, by name and Oracle Service Bus service type (BusinessService
or ProxyService
). If it finds one, then it creates a new "Endpoint
" asset and relates it to the service. In the case of Business Services, the endpoint is related to the External Service invoked by the Business Service.
EM Integration updates existing assets in Oracle Enterprise Repository of type "Deployment:BPEL
", which has the "EntryPoint
" relationship to an "Endpoint
" asset that has an endpointURI
attribute that matches the endpointURI
metric in EM. EM stores the WSDL location of the endpoint.
If no "Endpoint
" asset is found with the matching endpointURI, then the tool attempts to find a matching Service asset, by qualified name from the WSDL. If it finds one, then it creates a new "Endpoint
" asset and relates it to the service.
If no "Deployment:BPEL
" asset is found, then the tool attempts to find a maching Business Process: BPEL
asset, by process name. If it finds one, then it creates a new "Deployment:BPEL
" asset and relates it to the service.
EM Integration updates existing assets in Oracle Enterprise Repository of type "Endpoint
"", which have an endpointURI attribute that matches the endpointURI
metric in EM.
If no "Endpoint
" asset is found with the matching endpointURI, then the tool attempts to find a matching Service asset, by qualified name from the WSDL. If it finds one, then it creates a new "Endpoint
" asset and relates it to the service.
For every "Endpoint
" that is created, the EM Integration Utility creates a corresponding Artifact:WSDL
asset, if it does not already exist in Oracle Enterprise Repository. The EM Integration Utility also creates the Artifact:WSDL
and Artifact:XSD
assets for any imported file. It follows the fingerprinting rules in Oracle Enterprise Repository Harvester to look for existing artifacts in Oracle Enterprise Repository.
It is common for production endpoints to be monitored in EM, but not captured in Oracle Enterprise Repository. The EM Integration utility creates these endpoints, if it can find a matching service.The EM Integration utility creates Endpoint assets, if it can find a matching Service and creates Deployment:BPEL
assets, if it can find a matching Business Process:BPEL
.
In its default configuration, EM Integration attempts to update the following metrics in Oracle Enterprise Repository. These are all visible in the Operational tab for the asset in the Oracle Enterprise Repository Web user interface.
Not all of these metrics are gathered in EM for all of the target types mentioned above, so some might be omitted. The em-integration-settings.xml
file configures which metrics are gathered for which targets.
See Also:
Section 5.3.2.1, "Metric Mappings"Daily Average Response Time
Weekly Average Response Time
Monthly Average Response Time
Minimum Response Time
Maximum Response Time
Daily Requests
Weekly Requests
Monthly Requests
Daily Faults
Weekly Faults
Monthly Faults
Availability - Daily %
Availability - Weekly %
Availability - Monthly %
Availability - Daily %
Current Rated Maximum Requests per Second
Start Date for Metrics Monitoring
Last Updated
Link back to detailed metrics in EM
This section describes how to configure the Enterprise Manager Integration Utility.
This section contains the following topics:
Open the em-integration-settings.xml
file, which is located at <EM Integration Home>
and modify the following XML chunk to point to the Oracle Enterprise Repository instance, the EM database, and the web console with the right credentials.
The EM database is used to retrieve the metric information that is sent to Oracle Enterprise Repository. The EM console URL is used as the base URL for links back to EM, that are created within Oracle Enterprise Repository.
The introspectionSettings
section is used to configure the properties of any Endpoint assets that the utility creates. The createMissingEndpoints
attribute indicates whether Endpoint and Deployment:BPEL
assets are created. If false, then the rest of the section in the code below is ignored.
The matchMultipleEndpoints
attribute indicates the required action to be taken if the utility finds multiple Endpoints or Deployment:BPEL
assets in Oracle Enterprise Repository that match a target in EM. If true, then it updates all the endpoints with metrics (and log a warning). If false, then it skips the target (and log a warning).
The matchMultipleServices
attribute indicates the required action to be taken if the utility finds multiple Services or Business Process:BPEL
assets in Oracle Enterprise Repository that match a target in EM, during endpoint creation. If true, then it attaches new Endpoints / Deployment:BPEL
s to each of the matching assets (and log a warning). If false, then it skips the target (and log a warning).
The introspectionDescription, introspectionVersion, and registrationStatus attributes indicate properties that are set on any assets created.
<repository> <uri>http://localhost:7131/oer30/services/FlashlineRegistry</uri> <credentials> <user>admin</user> <password>*****</password> <enableTransaction>false</enableTransaction> <triggerEvent>false</triggerEvent> </credentials> <timeout>120000</timeout> </repository> <introspectionSettings> <createMissingEndpoints>true</createMissingEndpoints> <introspectionDescription>Found in EM </introspectionDescription> <introspectionVersion>1.0</introspectionVersion> <namespace>mythings</namespace> <!-- The Valid Registration states are 1)Unsubmitted 2)Submitted - Pending Review 3)Submitted - Under Review 4) Registered --> <registrationStatus>Submitted</registrationStatus> </introspectionSettings> <emDatabase> <driverClass>oracle.jdbc.driver.OracleDriver</driverClass> <url>jdbc:oracle:[email protected]:1501:mysid</url> <credentials> <user>sysman</user> <password>*****</password> </credentials> </emDatabase>
Note:
It is recommended that you run the Enterprise Manager Integration Utility as a user with the Basic Access Settings for Assets - View, Edit, Accept, and Register.Alternatively, the connection information can also be passed as parameters to the command line utility as follows:
C:\test\em-integration> em-integration - er_url http://localhost:7101/oer/services/FlashlineRegistryTr -er_user admin - er_password <password> - em_url jdbc:oracle:thin:@remotehost.there.com:1501:mysid - em_user sysman - em_password <empassword>
This section describes the following advanced configuration options for the Enterprise Manager Integration utility:
The mapping between metrics in EM and fields in Oracle Enterprise Repository are configured in em-integration-settings.xml

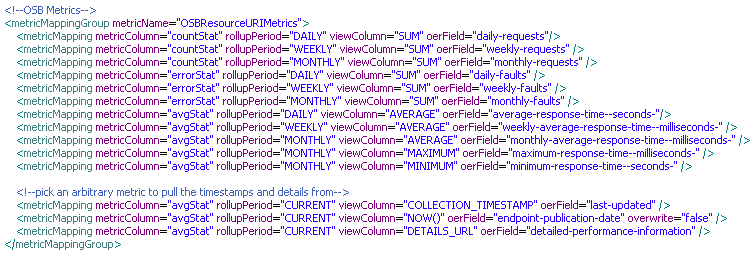

, as shown in Figure 5-2. To change these from the default settings, open this file and modify the following:
<metricMappingGroup>
: Mappings for a set of metrics with the same metric name in the EM database views. EM groups a set of related metrics under the same "metric name". Each individual metric has a different "metric column". This element has the following attribute:
metricName
: The EM metric name from the EM database views.
<metricMapping>
: Mapping for a single metric. This element has the following attributes:
metricColumn
: The EM metric column from the EM database views.
rollupPeriod
: Indicates which EM database view to query against, and how to aggregate the data. Must be one of {DAILY, WEEKLY, MONTHLY, CURRENT}.
viewColumn
: Indicates which column in the EM database view to pull the data from. Must be one of {VALUE, AVERAGE, SUM, MINIMUM, MAXIMUM, STANDARD_DEVIATION, SAMPLE_COUNT, COLLECTION_TIMESTAMP, ROLLUP_TIMESTAMP, NOW(), DETAILS_URL}.
The CURRENT rollup period does not support columns AVERAGE, SUM, MINIMUM, MAXIMUM, STANDARD_DEVIATION, SAMPLE_COUNT, or ROLLUP_TIMESTAMP.
The DAILY, WEEKLY and MONTHLY rollup periods doe not support columns VALUE or COLLECTION_TIMESTAMP.
NOW() is a "virtual column" that contains the time of the query against EM.
DETAILS_URL is a "virtual column" that contains a URL to the detailed information in EM. This is constructed by the EM Integration code - it's not in the EM database views.
oerField
: The internal name of the custom data field in Oracle Enterprise Repository where this data is stored.
overwrite
: Indicates whether to overwrite the custom data field in Oracle Enterprise Repository if it already has data. It represents either true or false, by default the value is true, if not specified.
The logic for correlating targets in EM with assets in Oracle Enterprise Repository is different for each target type. EM Integration ships with target finders for the following products: Oracle Service Bus, BPEL-PM, WebLogic.
If you are an advanced user, then you can create your own target finder classes. These must be configured in em-integration-settings.xml
, as shown in Figure 5-3.
<targetFinder>
: Mappings for a target type in EM to a target finder class. This element has the following attributes
targetType
: The EM target type from the EM database views.
targetFinderClass
: The fully-qualified classname of the finder class. This must implement com.oracle.oer.integration.em.TargetFinder, which is found in em-integration.jar.
To ensure security, the passwords in the configuration file must be encrypted before running the Enterprise Manager Integration utility. You can encrypt the configuration file passwords in the EM using either of the following methods:
Navigate to the <em_integration_home>
directory.
From a command prompt, run the password encryption tool as follows:
> encrypt.bat em-integration-settings.xml em-integration-settings.xml
The password encryption tool, (encrypt.bat
/encrypt.sh
), which is located in <Oracle_home>/tools/solutions/11.1.1.2.0-OER-PasswordTools.zip, allows you to encrypt the passwords that are stored in the configuration file, em-integration-settings.xml
.
From the Oracle Enterprise Repository Web Console
Navigate to the Oracle Enterprise Repository Web console at
http://<host>:<port>/<domain>/diag/encryptstrings.jsp (replace host, port, and domain to match to your computer credentials)
Scroll down to the Tools section and click the Encrypt Strings for passwords link to launch the Password encryption page.
Enter the clear text password into the String to Encrypt text box.
Click the Submit Query button.
Copy the resulting encrypted password string and paste it into the appropriate context or properties file(s).
This section describes the following known Enterprise Manager Integration Utility issues:
If you configure the em-integration-settings.xml
file with incorrect encrypted password, then a very long stack trace is displayed. An extract from the very long stack trace is as follows:
at org.apache.xerces.impl.XMLNSDocumentScannerImpl.scanStartElement(Unk own Source) at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl$FragmentConten Dispatcher.dispatch(Unknown Source) at org.apache.xerces.impl.XMLDocumentFragmentScannerImpl.scanDocument(U known Source) at org.apache.xerces.parsers.XML11Configuration.parse(Unknown Source) at org.apache.xerces.parsers.DTDConfiguration.parse(Unknown Source) at org.apache.xerces.parsers.XMLParser.parse(Unknown Source) at org.apache.xerces.parsers.AbstractSAXParser.parse(Unknown Source) at javax.xml.parsers.SAXParser.parse(SAXParser.java:395) at org.apache.axis.encoding.DeserializationContext.parse(Deserializatio Context.java:227) at org.apache.axis.SOAPPart.getAsSOAPEnvelope(SOAPPart.java:696) at org.apache.axis.Message.getSOAPEnvelope(Message.java:424) at org.apache.axis.handlers.soap.MustUnderstandChecker.invoke(MustUnder tandChecker.java:62) at org.apache.axis.client.AxisClient.invoke(AxisClient.java:206) at org.apache.axis.client.Call.invokeEngine(Call.java:2765) at org.apache.axis.client.Call.invoke(Call.java:2748) at org.apache.axis.client.Call.invoke(Call.java:2424) at org.apache.axis.client.Call.invoke(Call.java:2347) at org.apache.axis.client.Call.invoke(Call.java:1804) at com.flashline.registry.openapi.service.v300.FlashlineRegistryTrSoapB ndingStub.authTokenCreateWithLicense(FlashlineRegistryTrSoapBindingStub.java:74 1) at com.oracle.oer.sync.plugin.writer.oer.ALERConnectionCache.getAuthTok n(ALERConnectionCache.java:128) at com.oracle.oer.sync.plugin.writer.oer.ALERAssetQueries.getToken(ALER ssetQueries.java:82) at com.oracle.oer.sync.plugin.writer.oer.ALERAssetQueries.assetTypeQuer ByUUID(ALERAssetQueries.java:159) at com.oracle.oer.sync.framework.MetadataManager.putAssetType(MetadataM nager.java:204) at com.oracle.oer.sync.framework.impl.DefaultPluginManager.processIntro pector(DefaultPluginManager.java:104) ... 5 more
