3 Alternative Security Options

3.3.1 Options for Configuring Users and Roles

There are three options for setting up users and roles:

• Set up users and roles in the BI Publisher Security Center

  For this option, follow the instructions in this section.

• Configure BI Publisher with your LDAP server

  For this option, see Section 3.10.2, "Configuring BI Publisher to Use an LDAP Provider for Authentication and Authorization."

• Set up users and roles in a supported Oracle security model. For this option, see Chapter 5, "Integrating with Other Oracle Security Models."

3.6.1 A Role Must Be Assigned Catalog Permissions

A role assigned a functional role cannot perform any actions in the catalog until catalog permissions are granted. Note that the functional roles themselves (BI Publisher Developer, BI Publisher Scheduler, and so on) cannot be directly assigned permissions in the catalog. The functional roles must first be assigned to a custom role and then the custom role is available in the catalog permissions table.

3.6.2 A Role Can Be Granted Catalog Permissions Only

The permissions available directly in the catalog enable running reports, scheduling reports, and viewing report output. Therefore if your enterprise includes report consumers who have no other reason to access BI Publisher except to run and view reports, then the roles for these users consist of catalog permissions only.

3.6.3 Inherited Permissions

When a role is assigned one of the functional roles, and that role is granted permissions on a particular folder in the catalog, then some permissions are granted automatically based on the functional role.

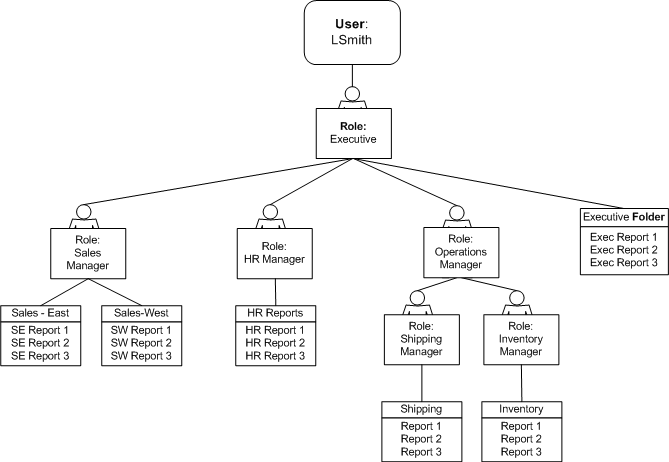

For example, assume that you create a role called Financial Report Developer. You assign this role the BI Publisher Developer role. For this role to create reports in the Financial Reports folder in the catalog, you grant this role Read, Write, and Delete permissions on the folder. Because the BI Publisher Developer role includes the run report, schedule report, and view report history privileges, these permissions are automatically granted on any folder to which a role assigned the BI Publisher Developer role is granted Read access.

3.8.1 Creating Roles

To create a new role in BI Publisher:

1. Navigate to the BI Publisher Administration page.

2. Under Security Center, click Roles and Permissions.

3. Click Create Role.

4. Enter a Name for the role and optionally, enter a Description.

5. Click Apply.

6. Click Assign Roles to assign roles to the user.

7. Use the shuttle buttons to move Available Roles to Assigned Roles. Click Apply.

8. To add a role to a role, click Add Roles.

9. Use the shuttle buttons to move Available Roles to Included Roles. Click Apply.

To add data sources to a role, see Section 3.8.4, "Granting Data Access."

3.8.2 Creating Users and Assigning Roles to a User

To create a new user in BI Publisher:

1. Navigate to the BI Publisher Administration page.

2. Under Security Center, click Users.

3. Click Create User.

4. Add the User Name and Password for the user.

5. Click Apply.

6. Click Assign Roles to assign roles to the user.

7. Use the shuttle buttons to move Available Roles to Assigned Roles. Click Apply.

3.8.3 Granting Catalog Permissions

For a role to access an object in the catalog, the role must be granted Read permissions on both the object and the folder in which the object resides. Permissions can be granted at the folder level and applied to all the objects and subfolders it contains, or applied to individual objects.

To grant catalog permissions to a role:

1. Navigate to the Catalog.

2. Locate the folder or object on which to grant permissions and click More. From the menu (shown in Figure 3-2), select Permissions. Alternatively, you can select the folder and click Permissions in the Tasks region.

   Note:

   Permissions cannot be granted on the root Shared folder.

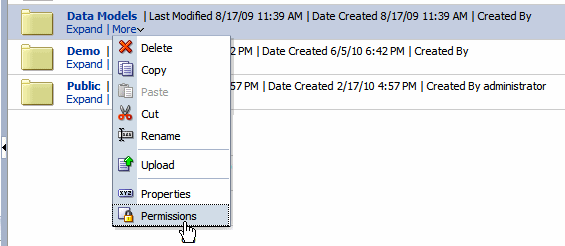

   Figure 3-2 More Menu


   Description of "Figure 3-2 More Menu"

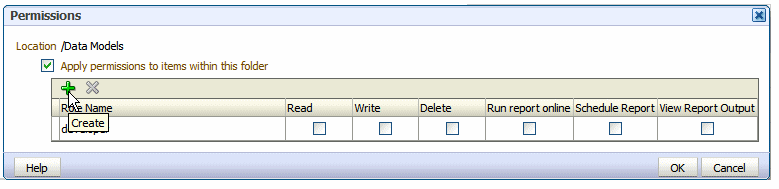

3. On the Permissions dialog (shown in Figure 3-3), click Create.

   Figure 3-3 Permissions Dialog


   Description of "Figure 3-3 Permissions Dialog"

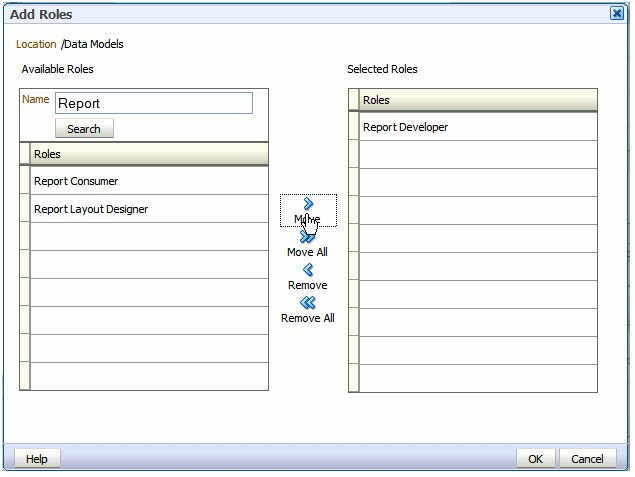

4. On the Add Roles dialog (shown in Figure 3-4), enter a search string to find a role, or simply click Search to display all roles. Use the shuttle buttons to move roles from the Available Roles list to the Selected Roles list.

   Figure 3-4 Add Roles Dialog


   Description of "Figure 3-4 Add Roles Dialog"



5. When finished, click OK to return to the Permissions dialog.

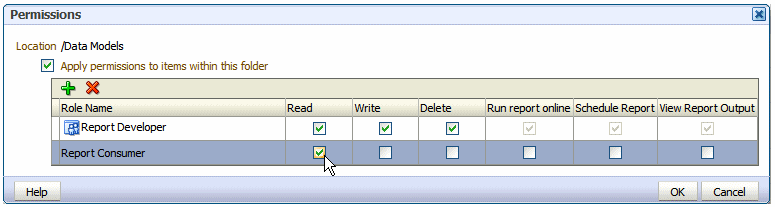

6. On the Permissions dialog (shown in Figure 3-5), configure the permissions required by the role.

   Figure 3-5 Permissions Dialog


   Description of "Figure 3-5 Permissions Dialog"



   Note the following:

   • The icon next to the Report Developer role indicates that this role is assigned one of the BI Publisher functional roles (in this case, the BI Publisher Developer role).

   • Once the Report Developer role is assigned access to this folder, the following permissions are automatically granted based on the privileges that comprise the BI Publisher Developer Role: Run report online, Scheduler Report, View Report Output.

7. If you are granting permissions on a Folder, select Apply permissions to items within this folder, if the permissions should apply to all objects.

3.8.4 Granting Data Access

A role must be granted access to a data source if the role must:

• Run or schedule a report built on a data model that retrieves data from the data source

• Create or edit a data model that retrieves data from the data source

To grant a role access to a data source:

1. Navigate to the BI Publisher Administration page.

2. Under Security Center, click Roles and Permissions.

3. On the Roles and Permissions page, locate the role, then click Add Data Sources.

4. On the Add Data Sources page you see a region for each of the following types of data sources:

   • Database Connections

   • File Directories

   • LDAP Connections

   • OLAP Connections

5. Use the shuttle buttons to move the required data sources from the Available Data Sources list to the Allowed Data Sources list.

6. When finished, click Apply.

3.10.1 Configuring BI Publisher to Use an LDAP Provider for Authentication Only

To use an LDAP provider for authentication in conjunction with another security model for authorization, perform the following in BI Publisher:

To configure BI Publisher to use LDAP for authentication only:

1. On the Administration page, under Security Center click Security Configuration.

2. Create a Local Superuser.

   Enter a Superuser Name and Password and select Enable Local Superuser check box. Enabling a local superuser ensures that you can access the Administration page of BI Publisher in case of security model configuration errors.

3. Scroll down to the Authentication region. Select the Use LDAP check box.

4. Enter the following:

   • URL

     For example: ldap://example.com:389/

     If you are using LDAP over SSL, then note the following:

     • the protocol is "ldaps"

     • the default port is 636

     An example URL would be: ldaps://example.com:636/

   • Administrator Username and Password for the LDAP server

     The Administrator user entered here must also be a member of the XMLP_ADMIN group.

   • Distinguished Name for Users

     For example: cn=Users,dc=example,dc=com

     The distinguished name values are case-sensitive and must match the settings in the LDAP server.

   • JNDI Context Factory Class

     The default value is com.sun.jndi.ldap.LdapCtxFactory

   • Attribute used for Login Username

     Enter the attribute that supplies the value for the Login user name. This is also known as the Relative Distinguished Name (RDN). This value defaults to cn.

   • Attribute used for user matching with authorization system - enter the attribute that supplies the value to match users to the authorization system. For example, orcleguid.

5. Click Apply. Restart the BI Publisher server.

3.10.2 Configuring BI Publisher to Use an LDAP Provider for Authentication and Authorization

BI Publisher can be integrated with the LDAP provider to manage users and report access. Create the users and roles within the LDAP server, then configure the BI Publisher server to access the LDAP server.

In the BI Publisher security center module, assign folders to those roles. When users log in to the server, they have access to those folders and reports assigned to the LDAP roles.

Integrating the BI Publisher server with Oracle LDAP consists of three main tasks:

1. Set up users and roles in the LDAP provider

2. Configure BI Publisher to recognize the LDAP server

3. Assign catalog permissions and data access to roles

For information on supported LDAP servers, see "System Requirements and Certification" for the most up-to-date information on supported hardware and software.

3.10.2.2 Configure the BI Publisher Server to Recognize the LDAP Server

To configure the BI Publisher server to recognize the LDAP server, update the Security properties in the BI Publisher Administration page.

Important:

Ensure that you understand your site's LDAP server configuration before entering values for the BI Publisher settings.

To configure the BI Publisher Server for the LDAP Server:

1. On the Administration page, under Security Center click Security Configuration.

2. Create a Local Superuser.

   Enter a Superuser Name and Password and select Enable Local Superuser check box. Enabling a local superuser ensures that you can access the Administration page of BI Publisher in case of security model configuration errors.

3. Scroll down to the Authorization region. Select LDAP for the Security Model.

4. Enter the following:

   • URL

     For example: ldap://example.com:389/

     If you are using LDAP over SSL, then note the following:

     • the protocol is "ldaps"

     • the default port is 636

     For example: ldaps://example.com:636/

   • Administrator Username and Password for the LDAP server

     The Administrator user entered here must also be a member of the XMLP_ADMIN group.

   • Distinguished Name for Users

     For example: cn=Users,dc=example,dc=com

     The distinguished name values are case-sensitive and must match the settings in the LDAP server.

   • Distinguished Name for Groups

     For example: cn=Groups,dc=us,dc=oracle,dc=com

     The default value is cn=OracleDefaultDomain,cn=OracleDBSecurity,cn=Products,cn=OracleContext,dc=example,dc=com

   • Group Search Filter

     The default value is (&(objectclass=groupofuniquenames)(cn=*))

   • Group Attribute Name

     The default value is cn

   • Group Member Attribute Name

     The default value is uniquemember

   • Member of Group Attribute Name

     (Optional) Set this attribute only if memberOf attribute is available for User and Group. Group Member Attribute is not required when this attribute is available. Example: memberOf or wlsMemberOf

   • Group Description Attribute Name

     The default value is description

   • JNDI Context Factory Class

     The default value is com.sun.jndi.ldap.LdapCtxFactory

   • Group Retrieval Page Size

     Setting this value enables support of the LDAPv3 control extension for simple paging of search results. By default, the BI Publisher server does not use pagination. This value determines the number of results to return on a page (for example, 200). Your LDAP server must support control type 1.2.840.113556.1.4.319 to support this feature, such as Oracle Internet Directory 10.1.4. Ensure that you check your LDAP server documentation for support of this control type before entering a value.

     For more information about LDAP pagination and the required control type, see the article: RFC 2696 - LDAP Control Extension for Simple Paged Results Manipulation (http://www.faqs.org/rfcs/rfc2696.html).

   • Attribute used for Login Username

     Enter the attribute that supplies the value for the Login user name. This is also known as the Relative Distinguished Name (RDN). This value defaults to cn.

   • Automatically clear LDAP cache - to schedule the automatic refresh of the LDAP cache the LDAP cache per a designated interval, select this box. After you select this box the following additional fields become enabled:

     • Enter an integer for Ldap Cache Interval. For example, to clear the LDAP cache once a day, enter 1.

     • Select the appropriate Ldap Cache Interval Unit: Day, Hour, or Minute.

   • Default User Group Name

     (Optional) Use this option if your site has the requirement to allow all authenticated users access to a set of folders, reports, or other catalog objects. The user group name that you enter here is added to all authenticated users. Any catalog or data source permissions that you assign to this default user group are granted to all users.

   • Attribute Names for Data Query Bind Variables

     (Optional) Use this property to set attribute values to be used as bind variables in a data query. Enter LDAP attribute names separated by a commas for example: memberOf, primaryGroupID,mail

     See the section "Creating Bind Variables from LDAP User Attributes" in the Oracle Fusion Middleware Data Modeling Guide for Oracle Business Intelligence Publisher.

5. Click Apply. Restart the BI Publisher server.

Figure 3-6 shows a sample of the LDAP security model entry fields from the Security Configuration page.

Figure 3-6 Sample of LDAP Security Model Entry Fields

Description of "Figure 3-6 Sample of LDAP Security Model Entry Fields"

If you are configuring BI Publisher to use LDAP over SSL, then you must also configure Java keystore to add the server certificate to JVM. For more information, see Section 4.3, "Configuring BI Publisher for Secure Socket Layer (SSL) Communication."

3.10.3 Disable Users Without BI Publisher-Specific Roles from Logging In

To disable users without BI Publisher-specific roles from logging in to the BI Publisher server, set a configuration property in the xmlp-server-config.xml file located at:

<repository>/Admin/Configuration/xmlp-server-config.xml

In the xmlp-server-config.xml file, add the following property and setting:

<property name="REQUIRE_XMLP_ROLE_FOR_LOGIN" value="true"/>

3.11.1 Configuring the Active Directory

To configure the active directory:

1. Add users who must access BI Publisher.

   Add the users under "Users" or any other organization unit in the Domain Root.

2. Add the BI Publisher system groups. The Scope of the groups must be Domain Local.

   Table 3-6 describes the BI Publisher system groups that must be added.

   Table 3-6 BI Publisher System Groups

   BI Publisher System Group	Description
   XMLP_ADMIN	The administrator role for the BI Publisher server. You must assign the Administrator account used to access your LDAP server the XMLP_ADMIN group.
   XMLP_DEVELOPER	Allows users to create and edit reports and data models.
   XMLP_SCHEDULER	Allows users to schedule reports.
   XMLP_TEMPLATE_DESIGNER	Allows users to connect to the BI Publisher server from the Template Builder for Word and to upload and download templates. Allows users to design layouts using the BI Publisher Layout Editor.




3. Grant BI Publisher system groups to global groups or users.

   You can grant BI Publisher system groups directly to users or through global groups.

Example 1: Grant Users the BI Publisher Administrator Role

1. Under the Active Directory User and Computers, open the XMLP_ADMIN group and click the Members tab.

2. Click Add to add users who need to BI Publisher Administrator privileges.

Example 2: Grant Users Access to Scheduling Reports

The "HR Manager" global group is defined under "Users".

All users in this group need to schedule reports.

To achieve this, add "HR Manager" as a Member of the XMLP_SCHEDULER group.

3.11.2 Configuring BI Publisher

To configure BI Publisher:

1. On the Administration page, click Security Configuration.

2. Set up a Local Superuser if one has not been configured. This is very important in case the security configuration fails, you must still be able to log in to BI Publisher using the Superuser credentials.

3. In the Authorization region of the page, select LDAP from the Security Model list.

4. Enter the details for the Active Directory server, as described in Section 3.10.2.2, "Configure the BI Publisher Server to Recognize the LDAP Server," noting the following specific information for Active Directory:

   • Set Group Search Filter objectclass to "group"

   • Set Member of Group Member Attribute Name to "memberOf" (Group Member Attribute Name can be left blank).

   • Set Attribute used for Login Username to "sAMAccountName".

   • If your are using LDAP over SSL note the following:

     • the protocol is "ldaps"

     • the default port is 636

     An example URL would be: ldaps://example.com:636/

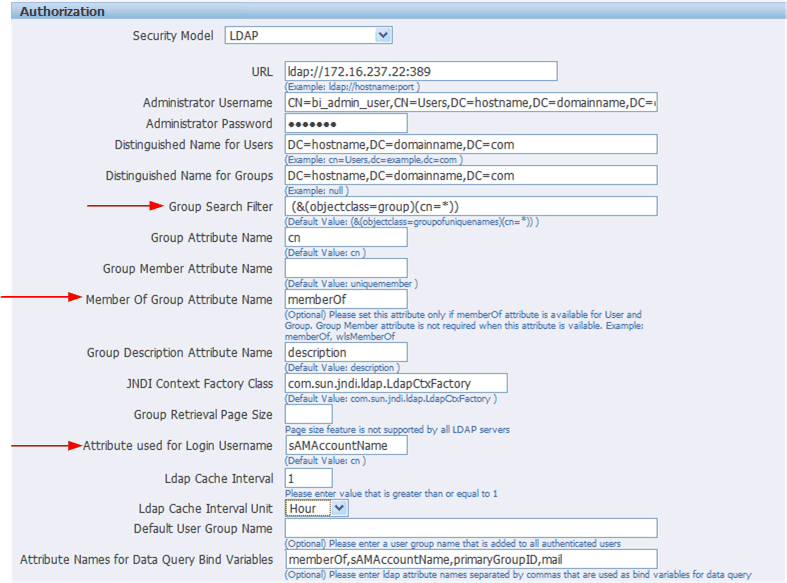

   Figure 3-7 shows an example configuration highlighting the recommendations stated above.

   Figure 3-7 Example Configuration


   Description of "Figure 3-7 Example Configuration"



5. Click Apply. Restart the BI Publisher application.

If you are configuring BI Publisher to use LDAP over SSL, then you must also configure Java keystore to add the server certificate to JVM. For more information, see Section 4.3, "Configuring BI Publisher for Secure Socket Layer (SSL) Communication."

3.11.3 Logging In to BI Publisher Using the Active Directory Credentials

The User login name defined in Active Directory Users and Computers >User Properties >Account is used for the BI Publisher login name. Add the Domain to the user name to log in to BI Publisher. For example: "[email protected]".

Note the following:

• The Attribute used for Login Username can be sAMAccountName instead of userPrincipalName.

• You must use sAMAccountName for the Attribute used for Login Username when the "User logon name (pre-Windows 2000)" is required to use for the BI Publisher login username.

• User names must be unique across all organization units.

3.11.4 Assign Data Access and Catalog Permissions to Roles

To assign data access and catalog permissions to roles:

1. Log in to BI Publisher as a user assigned the XMLP_ADMIN role in Active Directory.

2. On the Administration page click Roles and Permissions.

   You see the roles that you created in Active Directory to which you assigned the XMLP_ roles. Note the following:

   • The XMLP_X roles are not shown because these are controlled through the Active Directory interface.

   • The Users tab is no longer available under the Security Center because users are now managed through Active Directory.

   • Roles are not updatable in the BI Publisher interface, except for adding data sources.

3. Click Add Data Sources to add BI Publisher data sources to the role. A role must be assigned access to a data source to run reports from that data source or to build data models from the data source. For more information see Section 3.8.4, "Granting Data Access."

4. Grant catalog permissions to roles. See Section 3.5, "About Catalog Permissions" and Section 3.8.3, "Granting Catalog Permissions" for details on granting catalog permissions to roles.

3.12.1 How BI Publisher Operates with SSO Authentication

After SSO authorization has been implemented, BI Publisher operates as if the incoming web request is from a user authenticated by the SSO solution. User personalization and access controls such as data-level security are maintained in this environment.

3.12.2 Tasks for Setting Up SSO Authentication with BI Publisher

Table 3-7 contains SSO authentication configuration tasks and provides links for obtaining more information.

3.13.1 Configuring a New Authenticator for Oracle WebLogic Server

After installing BI Publisher, the Oracle WebLogic Server embedded LDAP server is the default authentication source (identity store). To use a new identity store (for example, OID), as the main authentication source, you must configure the Oracle WebLogic Server domain (where BI Publisher is installed).

For more information about configuring authentication providers in Oracle WebLogic Server, see Oracle Fusion Middleware Securing Oracle WebLogic Server.

To configure a new authenticator in Oracle WebLogic Server:

1. Log in to Oracle WebLogic Server Administration Console and click Lock & Edit in the Change Center.

2. Select Security Realms from the left pane and click myrealm.

   The default Security Realm is named myrealm.

3. Display the Providers tab, then display the Authentication sub-tab.

4. Click New to launch the Create a New Authentication Provider page.

   Complete the fields as follows:

   • Name: OID Provider, or a name of your choosing.

   • Type: OracleInternetDirectoryAuthenticator

   • Click OK to save the changes and display the authentication providers list updated with the new authentication provider.

5. Click the newly added authenticator in the authentication providers table.

6. Navigate to Settings, then select the Configuration\Common tab:

   • Select SUFFICIENT from the Control Flag list.

   • Click Save.

7. Display the Provider Specific tab and specify the following settings using appropriate values for your environment:

   Section Name	Field Name	Description
   Connection	Host	The LDAP host name. For example, <localhost>.
   Connection	Port	The LDAP host listening port number. For example, 6050.
   Connection	Principal	The distinguished name (DN) of the user that connects to the LDAP server. For example, cn=orcladmin.
   Connection	Credential	The password for the LDAP administrative user entered as the Principal.
   Users	User Base DN	The base distinguished name (DN) of the LDAP server tree that contains users. For example, use the same value as in Oracle Access Manager.
   Users	All Users Filter	The LDAP search filter. For example, (&(uid=*) (objectclass=person)). The asterisk (*) filters for all users. Click More Info... for details.
   Users	User From Name Filter	The LDAP search filter. Click More Info... for details.
   Users	User Name Attribute	The attribute that you want to use to authenticate (for example, cn, uid, or mail). Set as the default attribute for user name in the directory server. For example, uid. Note: The value that you specify here must match the User Name Attribute that you are using in the authentication provider.
   Groups	Group Base DN	The base distinguished name (DN) of the LDAP server tree that contains groups (same as User Base DN).
   General	GUID attribute	The attribute used to define object GUIDs in LDAP. orclguid




   For more information about configuring authentication providers in Oracle WebLogic Server, see Oracle Fusion Middleware Securing Oracle WebLogic Server.

8. Click Save.

9. Perform the following steps to set up the default authenticator for use with the Identity Asserter:

   1. At the main Settings for myrealm page, display the Providers tab, then display the Authentication sub-tab, then select DefaultAuthenticator to display its configuration page.

   2. Display the Configuration\Common tab and select 'SUFFICIENT' from the Control Flag list.

   3. Click Save.

10. Perform the following steps to reorder Providers:

    1. Display the Providers tab.

    2. Click Reorder to display the Reorder Authentication Providers page

    3. Select a provider name and use the arrow buttons to order the list of providers as follows:

       • OID Authenticator (SUFFICIENT)

       • OAM Identity Asserter (REQUIRED)

       • Default Authenticator (SUFFICIENT)

    4. Click OK to save your changes.

11. In the Change Center, click Activate Changes.

12. Restart Oracle WebLogic Server.

3.13.2 Configuring OAM as a New Identity Asserter for Oracle WebLogic Server

The Oracle WebLogic Server domain in which BI Publisher is installed must be configured to use an Oracle Access Manager asserter.

For more information about creating a new asserter in Oracle WebLogic Server, see Oracle Fusion Middleware Oracle WebLogic Server Administration Console Online Help.

To configure Oracle Access Manager as the new asserter for Oracle WebLogic Server:

1. Log in to Oracle WebLogic Server Administration Console.

2. In Oracle WebLogic Server Administration Console, select Security Realms from the left pane and click the realm you are configuring. For example, myrealm. Select Providers.

3. Click New. Complete the fields as follows:

   • Name: OAM Provider, or a name of your choosing.

   • Type: OAMIdentityAsserter.

4. Click OK.

5. Click Save.

6. In the Providers tab, perform the following steps to reorder Providers:

   1. Click Reorder

   2. In the Reorder Authentication Providers page, select a provider name, and use the arrows beside the list to order the providers as follows:

      • OID Authenticator (SUFFICIENT)

      • OAM Identity Asserter (REQUIRED)

      • Default Authenticator (SUFFICIENT)

   3. Click OK to save your changes.

7. In the Change Center, click Activate Changes.

8. Restart Oracle WebLogic Server.

   You can verify that Oracle Internet Directory is the new identity store (default authenticator) by logging back into Oracle WebLogic Server and verifying the users and groups stored in the LDAP server appear in the console.

9. Use Fusion Middleware Control to enable SSO authentication.

3.13.3 Configuring BI Publisher for Oracle Fusion Middleware Security

After Oracle WebLogic Server has been configured, navigate to the BI Publisher Administration Security Configuration page. In the Authorization region select Oracle Fusion Middleware as the Security Model as shown in the following figure:

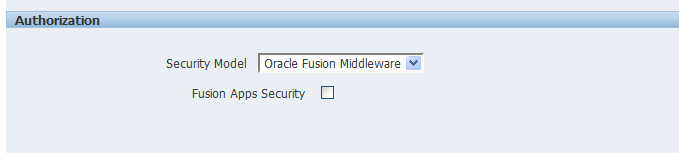

Figure 3-8 Fusion Middleware Security Selection

3.14.1 Setup Procedure

To set up SSO:

1. Modify the application server configuration file to protect the xmlpserver. See the section "Configuring mod_osso to Protect Web Resources" in Oracle Fusion Middleware Application Security Guide.

2. In the mod_osso.conf add a new "Location" directive as follows:

   <!-- Protect xmlpserver -->
   <Location /xmlpserver>
         require valid-user
         AuthType Basic
   </Location>



3. To allow Web service communication between BI Publisher and its client component (the Template Builder) you must make additional modifications to the mod_osso.conf file. To open up the xmlpserver to allow these Web services, enter the following directives:

   <Location /xmlpserver/services/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>

   <Location /xmlpserver/report_service/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>

   Location /xmlpserver/ReportTemplateService.xls/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>




4. For integration with Oracle BI Presentation Services, you must disable SSO for Web services between the BI Presentation Services server and the BI Publisher server. If you made this entry when performing the previous step, then you do not need to repeat this setup.

   To open up the xmlpserver to allow the Web service, enter the following directive in the mod_osso.conf file:

   <Location /xmlpserver/services/>
    require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>


   A sample mod_osso.conf file with the entries discussed in this section is shown below:

   LoadModule osso_module libexec/mod_osso.so

    <IfModule mod_osso.c>
        OssoIpCheck off
        OssoIdleTimeout off
        OssoConfigFile /home/as1013/ohome/Apache/Apache/conf/osso/osso.conf

      <Location /xmlpserver>
        require valid-user
        AuthType Basic
      </Location>


   <Location /xmlpserver/services/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>

   <Location /xmlpserver/report_service/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>

   Location /xmlpserver/ReportTemplateService.xls/>
     require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>

   <Location /xmlpserver/Guest/>
    require valid-user
        AuthType Basic
        Allow from All
        Satisfy any
   </Location>
    #
    # Insert Protected Resources: (see Notes below for how to protect resources)
    #


    #______-
    #
    # Notes
    #
    #______-
    #
    # 1. Here's what you need to add to protect a resource,
    #    e.g. <ApacheServerRoot>/htdocs/private:
    #
    #      <Location /private>
    #      require valid-user
    #      AuthType Basic
    #      </Location>
    #
    </IfModule>

    #
    # If you would like to have short hostnames redirected to
    # fully qualified hostnames to allow clients that need
    # authentication through mod_osso to be able to enter short
    # hostnames into their browsers uncomment out the following
    # lines
    #
    #PerlModule Apache::ShortHostnameRedirect
    #PerlHeaderParserHandler Apache::ShortHostnameRedirect


5. Restart the HTTP server.

6. In BI Publisher: Set up the Single Sign-Off URL on the BI Publisher Security Configuration page.

   On the Administration page, click Security Configuration. In the Authentication region:

   • Select Use Single Sign-On

   • From the Single Sign-On Type list, select Oracle Single Sign On

   • Enter the Single Sign-Off URL with the value you wrote down in the preceding step. The remaining fields are not applicable to Oracle SSO.

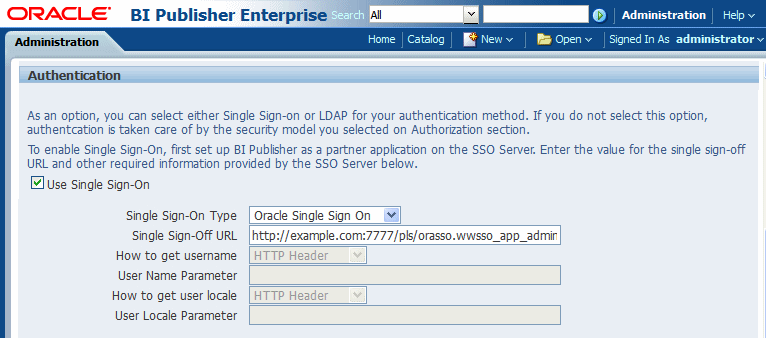

     A sample BI Publisher Security Configuration page is shown in Figure 3-9.

     Figure 3-9 Sample BI Publisher Security Configuration Page


     Description of "Figure 3-9 Sample BI Publisher Security Configuration Page"



7. Create a BI Publisher Local Superuser to ensure access to BI Publisher regardless of your selected security configuration. See Section 4.1, "Enabling a Local Superuser" for more information.

8. Click Apply. Restart the application through the Oracle Fusion Middleware Control page.

9. Enter the URL to access the BI Publisher Enterprise application, and you are redirected to the SSO login page.
