The
superclass-table inheritance strategy results in
a single table containing records for two or more different classes
in an inheritance hierarchy. Similarly, using the
new-table strategy to create joined subclass tables
results in the superclass table holding records for superclass
instances as well as for the superclass state of subclass instances.
When selecting data, JDOR needs a way to differentiate a row
representing an object of one class from a row representing an object
of another. That is the job of the discriminator
mapping element.
The discriminator element is nested within the
inheritance element. The least-derived mapped
class in an inheritance hierarchy defines the discriminator. In other
words, the first new-table class in a hierarchy
declares the discriminator strategy and column; subclass-table
superclasses do not declare a discriminator at all, and all
subclasses of the first new-table class can only
declare a discriminator value. The discriminator
element has the following attributes:
strategy: The discriminator strategy. JDOR recognizes several standard strategies, which we detail in the following sections. Vendors may also define their own proprietary strategies.![[Note]](img/note.gif)
Note Kodo defines the
finaldiscriminator strategy for base persistent classes that are not declared final, but nevertheless will not have any persistent subclasses. Using thefinalstrategy for these classes is slightly more efficient than thenonestrategy described below. Kodo also allows you to plug in your own discriminator implementations. The Reference Guide's Section 7.10, “Custom Mappings” has details on creating custom discriminators.value: A discriminator value for this class. This attribute is used with thevalue-mapdiscriminator strategy; see Section 15.9.2, “value-map”.column: The column that holds the discriminator value. As you will see, not all discriminator strategies require a column. As with thedatastore-identityelement, you can use a nestedcolumnelement in lieu of thecolumnattribute.
The class-name discriminator strategy
writes the name of the class each row represents to the
discriminator column, indicated by the column
attribute/element. Aside from its ease-of-use, the main
advantage of this strategy is that a good JDOR implementation can
calculate all of the subclasses of a given persistent type
solely by querying the discriminator column. This means that you
do not have to point the implementation at a manually-maintained
list of persistent classes. It can be bothersome to keep such a
list properly synchronized with a rapidly-changing object model
during development, or to deploy with a full list of classes in
a J2EE environment where multiple sub-applications share a single
server.
On the other hand, storing class names in the database couples your
data to your Java object model. In many projects, the persistent
data will last far longer than your object mode; perhaps even longer
than the Java language itself! For these projects, consider the
value-map strategy.
The value-map strategy is like the
class-name strategy, except that a designated
symbolic value is written to the discriminator column instead of
the class name. This means the JDOR implementation cannot determine
a type's subclasses by querying the discriminator column alone, but
it has the advantage of keeping your database independent of your
object model.
To use the value-map strategy, the least-derived
mapped class declares the discriminator column, and all concrete
classes in the hierarchy (least-derived class included) use the
discriminator element's value
attribute to assign themselves a symbolic value. This value will
be inserted into the discriminator column for rows representing
instances of the class. In fact, the discriminator strategy
automatically defaults to value-map whenever
the value attribute is defined; you do not need
to specify the strategy attribute as well.
Setting the discriminator strategy to none
indicates that there is no discriminator column. This is illegal
for hierarchies using superclass-table
inheritance, but is valid in other circumstances:
Base classes that you will never extend do not need a discriminator.
Subclasses of a
subclass-tabletype do not need a discriminator, unless they themselves have additional subclasses.A vertical hierarchy that uses joined subclass tables via the
new-tableinheritance strategy does not require a discriminator column, if your database supports outer joins. An outer join is a join in which the related record does not have to exist. When reading an object, the JDOR implementation can outer join to all possible subclass tables and use the presence or absence of a matching row in each table to calculate the class of the instance. Obviously, this is not a very efficient strategy for large hierarchies; for these we recommend using a column-based strategy such asvalue-map.

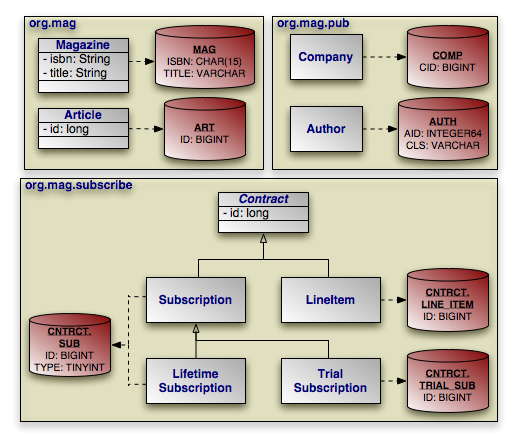

We can now translate our newfound knowledge of JDOR discriminators into concrete JDOR mappings. We first extend our diagram with discriminator columns:
Next, we present the updated mapping document. There are several things to notice in this revised version:
We have removed explicit inheritance strategy declarations for classes using the default strategy.
Magazine,Article, andCompanyuse thenonediscriminator strategy because we do not plan on subclassing them.Authoruses theclass-namestrategy; perhaps we plan on selling our application framework to other developers, and we want them to be able to add new subclasses ofAuthoreasily.Contractis abstract and is not a mapped class (it usessubclass-tableinheritance), and therefore it has no discriminator. Its two subclassesSubscriptionandLineItem, however, are each the least-derived mapped classes in the hierarchy, and so they each declare a discriminator. Note that though they are sibling classes, they can each use a different discriminator mapping because their superclass is unmapped.Subscription's discriminator strategy automatically defaults tovalue-mapbecause we define thevalueattribute. Under thevalue-mapstrategy, we must also define a unique discriminator value for every concrete subclass ofSubscription.Discriminator columns default to type
VARCHAR.Subscriptionand its subclasses use numeric discriminator values; therefore, when we mapSubscription's discriminator column we use a nestedcolumnelement rather than thecolumnattribute. The nested element allows us to tell the JDOR implementation the properjdbc-typeof the column.
Example 15.9. Discriminator Mapping
<?xml version="1.0"?>
<orm>
<package name="org.mag">
<sequence name="ArticleSeq" datastore-sequence="ART_SEQ"/>
<class name="Magazine" table="MAG">
<inheritance>
<discriminator strategy="none"/>
</inheritance>
<field name="isbn">
<column name="ISBN" jdbc-type="char" length="15"/>
</field>
<field name="title" column="TITLE"/>
...
</class>
<class name="Article" table="ART">
<inheritance>
<discriminator strategy="none"/>
</inheritance>
<field name="id" column="ID"/>
...
</class>
</package>
<package name="org.mag.pub">
<sequence name="AuthorSeq" factory-class="Author$SequenceFactory"/>
<class name="Company" table="COMP">
<datastore-identity column="CID" strategy="autoassign"/>
<inheritance>
<discriminator strategy="none"/>
</inheritance>
...
</class>
<class name="Author" table="AUTH">
<datastore-identity sequence="AuthorSeq">
<column name="AID" sql-type="INTEGER64"/>
</datastore-identity>
<inheritance>
<discriminator column="CLS" strategy="class-name"/>
</inheritance>
...
</class>
</package>
<package name="org.mag.subscribe">
<sequence name="ContractSeq" strategy="transactional"/>
<class name="Contract">
<inheritance strategy="subclass-table"/>
...
</class>
<class name="Subscription" table="CNTRCT.SUB">
<inheritance>
<discriminator value="1">
<column name="TYPE" jdbc-type="tinyint"/>
</discriminator>
</inheritance>
<field name="Contract.id" column="ID"/>
...
</class>
<class name="LifetimeSubscription">
<inheritance>
<discriminator value="2"/>
</inheritance>
...
</class>
<class name="TrialSubscription" table="CNTRCT.TRIAL_SUB">
<inheritance strategy="new-table">
<join column="ID"/>
<discriminator value="3"/>
</inheritance>
...
</class>
<class name="Subscription$LineItem" table="CNTRCT.LINE_ITEM">
<inheritance>
<discriminator strategy="none"/>
</inheritance>
<field name="Contract.id" column="ID"/>
...
</class>
</package>
</orm>
